Technical Data
Open terrain
Application :
up to 30°
Elevation angle:
5,000 mm above
Distance between footings:
60 m/s
Wind speed:
Framed, unframed
PV module:
Landscape, portrait
Module orientation:
Steel or Anodized Aluminum T5
Material:
12 years
Warranty:

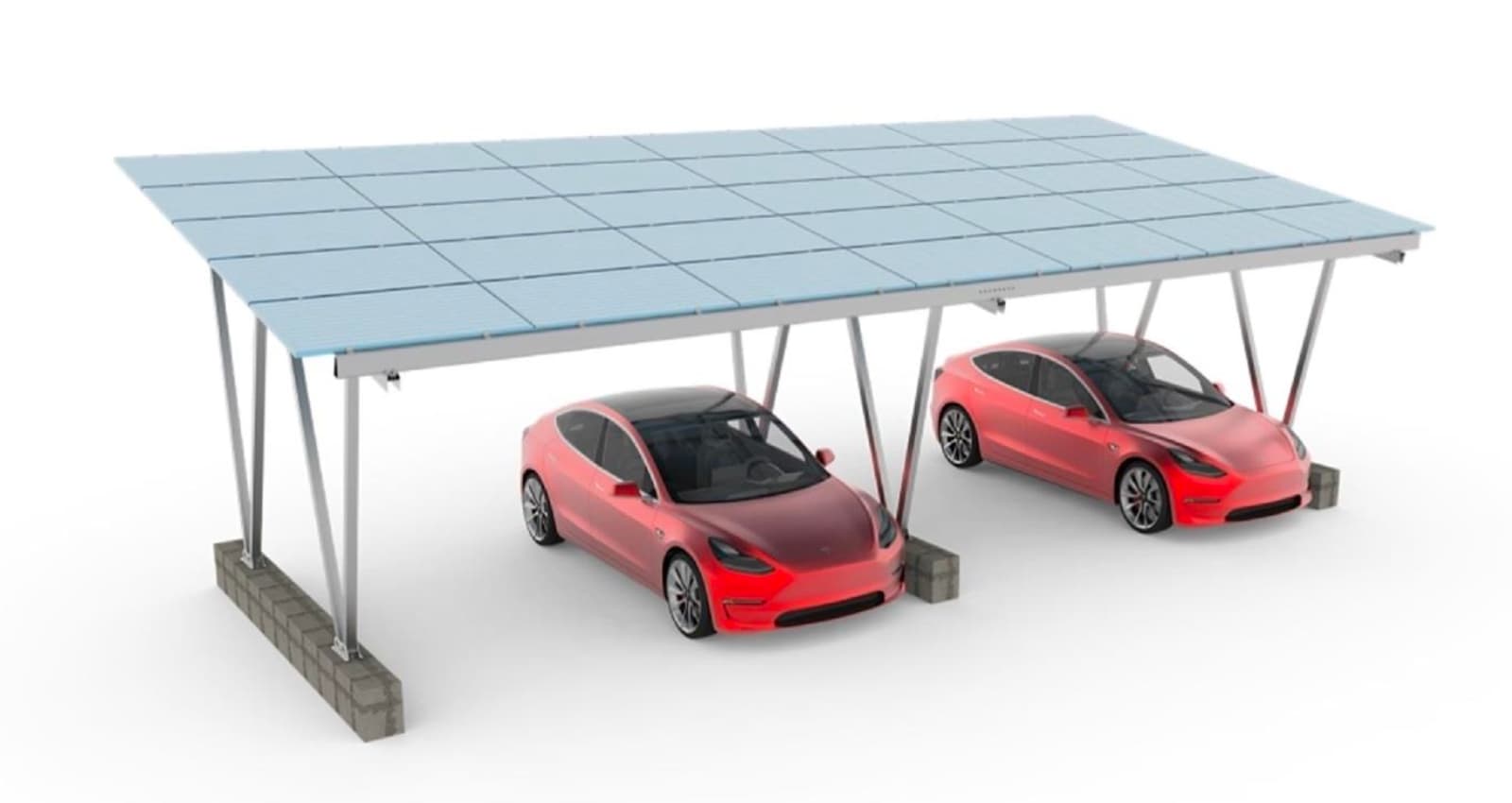

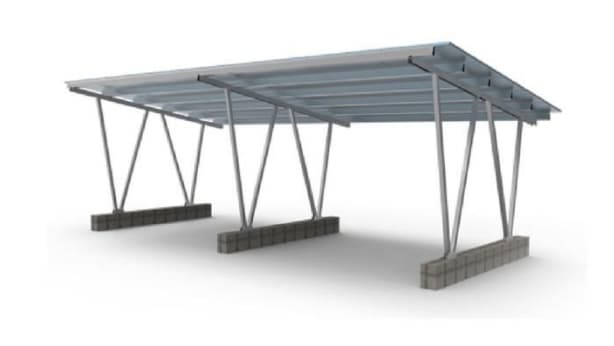

SOLAR CARPORT MOUNT
MEGA FORM’s Solar Carport Mounting System offers a simplified and cost-effective solution, providing both sheltered parking and solar power generation. It is designed with multiple configurations to accommodate single or double rows of parking and is compatible with most PV module types, orientations, and inclinations.
Various foundation options, including precast concrete, bored piers, and ground screws, allow flexibility in installation. Long spans between foundations reduce costs and simplify the construction process.
The solar carport maximizes the use of existing parking space with a streamlined design, making it an ideal solution for showcasing an environmentally friendly image or integrating electric vehicle charging stations.
